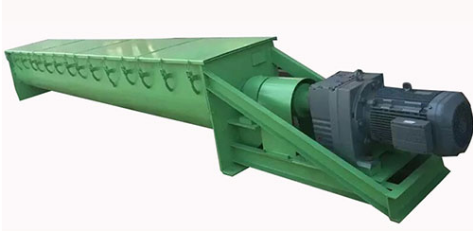

產品概述
螺(luo)旋(xuan)輸(shu)送機(ji)是(shi)一種不帶擾(rao)性牽引構件(jian)的連續輸(shu)送設備，它利用旋(xuan)轉的螺(luo)旋(xuan)將(jiang)被輸(shu)送的物(wu)(wu)料沿(yan)固(gu)定的機(ji)殼為表面推(tui)移而進行輸(shu)送工(gong)作，其情況(kuang)好象是(shi)被持(chi)住不能旋(xuan)轉的螺(luo)母(mu)沿(yan)絲桿作平(ping)移運(yun)動一樣(yang)，使物(wu)(wu)料不與螺(luo)旋(xuan)一起旋(xuan)轉的力(li)量是(shi)物(wu)(wu)料的重力(li)和(he)機(ji)殼對于物(wu)(wu)料的摩擦阻力(li)。
技術參數
規格/型(xing)號 Spc/Type | LS100 | LS160 | LS200 | LS250 | LS315 | LS500 | LS800 | LS1000 | LS1250 |
螺旋直(zhi)徑 Spiral Dia. | 100 | 160 | 200 | 250 | 315 | 500 | 800 | 1000 | 1250 |
螺距 Pitch | 100 | 160 | 200 | 250 | 315 | 400 | 500 | 560 | 630 |
n | 140 | 112 | 100 | 90 | 80 | 63 | 40 | 32 | 25 |
Q | 2.2 | 7 | 13 | 22 | 31 | 98 | 200 | 280 | 380 |
n | 112 | 90 | 80 | 71 | 63 | 50 | 32 | 25 | 20 |
Q | 1.7 | 6 | 10 | 18 | 24 | 78 | 160 | 220 | 306 |
n | 90 | 71 | 63 | 56 | 50 | 40 | 25 | 20 | 16 |
Q | 1.4 | 5 | 8 | 14 | 19 | 62 | 126 | 176 | 245 |
n | 71 | 50 | 50 | 45 | 40 | 32 | 20 | 16 | 13 |
Q | 1.1 | 3.1 | 6.2 | 11 | 15.4 | 50 | 102 | 140 | 198 |
Remarks | 1. n-Speed-r/min(Deviation allowed within 10% range) 2.Q-Transmit Mass-m3/h. | ||||||||
