產品概述

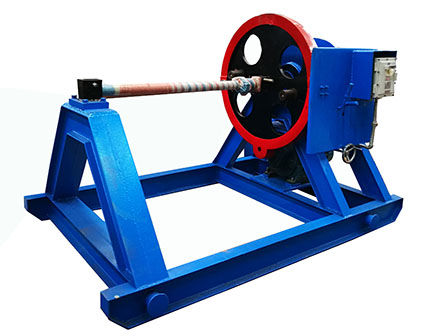

倒繩機是(shi)應用(yong)(yong)于(yu)(yu)鉆機天車、游車工作鋼絲(si)繩收(shou)放的專用(yong)(yong)設(she)備(也可用(yong)(yong)于(yu)(yu)相似原(yuan)理的收(shou)放工具(ju))。由于(yu)(yu)它(ta)配備了引(yin)繩滾筒(tong)，不用(yong)(yong)其它(ta)輔助設(she)備和工具(ju)就可以完(wan)成開(kai)鉆前的穿繩工作及完(wan)鉆時的收(shou)繩工作。作業更為方便安全，易于(yu)(yu)操作。
技術參數
型(xing)號 Model 規格Spec | DSJ8-D | DSJ15-D | DSJ8-Y | DSJ15-Y |
驅動方式 Drive Type | Electric | Hydraulic | ||
支架間距 (mm) Support Spacing | 1260 | 1320 | 1260 | 1320 |
中心(xin)高 (mm） Height of Center | 1105 | 1650 | 1105 | 1650 |
額定輸出(chu)扭(niu)矩 (KN.m) Rated Output Torque | 10 | |||
額定轉速 (RPM) Rated Speed | 3.7-18 | 0.55-17.5 | ||
電機(ji)功率(lv) (KW) Motor Power | 5.5KW 380V 50Hz | |||
液壓功率(lv) (MPa) Hydraulic Pressure | 16MPa, Flow:100L/min | |||
最大承重 (KN) Max Workload | 80 | 150 | 80 | 150 |
重量 Weight (KG) | 1500 | 1800 | 1500 | 1800 |
外形尺寸 (mm) External Dimension | 2673x1728x1630 | 3045x2050x1845 | 2673x1728x1845 | 3045x2050x1845 |
